Step Three: A Map of Movement Marks

Want to contribute and expand this page? Email connect@aslwrite.com!


What Are Movement Marks?

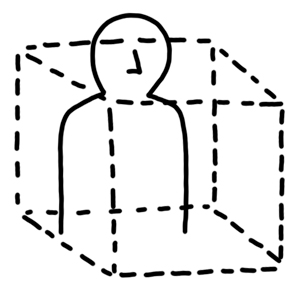

It is important to understand that the primary space that you use on paper is also the signing space that is right in front of you. When you sign, there are imaginary boundaries that you keep your words within so that other people can easily listen to you. If you cross the boundaries the other person has to work harder to track your words with their eyes. This imaginary “cube” is called neutral space.

neutralspace Step Three: A Map of Movement Marks

Neutral Space

Neutral space is where you sign/write ASL words that do not contact your body. The imaginary cube of neutral space becomes a square on paper.

livevspaper Step Three: A Map of Movement Marks

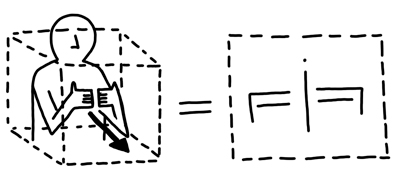

How neutral space changes from live 3-D to 2-D on paper. The ASL word is “go ahead.”

Movement marks are the “arrows” that show how handshapes move around in neutral space. They help visualize the movement of the ASL word by mirroring your movement. Do not write in neutral space as if you are watching someone else! You are expressing ASL on paper from your perspective.

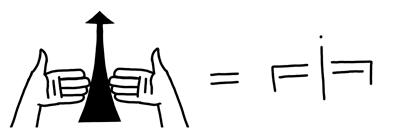

goaheadspace Step Three: A Map of Movement Marks

The ASL word “go ahead” from first person perspective and as written.


The Parts Of A Movement Mark

A basic movement mark consists of a motion line and an endpoint.

movementline Step Three: A Map of Movement Marks

A movement mark.

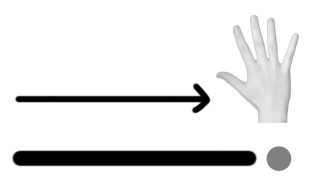

Motion lines follow the movement of the handshape in neutral space.

motionline Step Three: A Map of Movement Marks

Motion Line

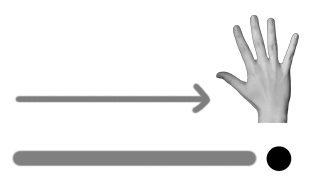

An endpoint stops the motion line.

endpoint Step Three: A Map of Movement Marks

Endpoint

Those two parts also create the two categories of movement marks — line and point.


Following The Lines

There are two types of motion lines: cardinal and morphing.

Cardinal motion lines follow set “paths.” They are consistent in their placement and align on a vertical and horizontal axis. The five types of cardinal motion lines are directional, random, expanding, and contracting.

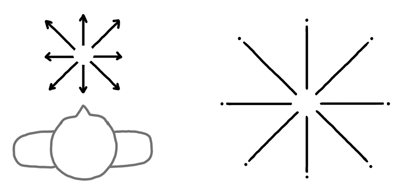

Directional motion lines are consistent lines in a set “path” or direction. Those lines are written horizontally, vertically, or diagonally, and translate to movement that is done forward, backward, to the left or to the right. They are the most heavily used when writing in ASL.

directional Step Three: A Map of Movement Marks

Horizontal Directional Lines

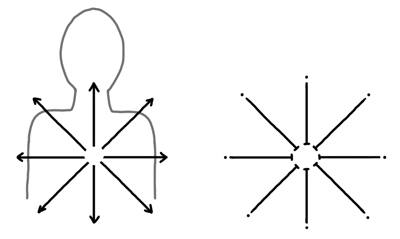

Adding a vertical mark changes the direction of motion lines to an up and down axis. It is a short “T” at the beginning of a motion line.

directionalvert Step Three: A Map of Movement Marks

Vertical Directional Lines
(directional lines with a vertical mark)

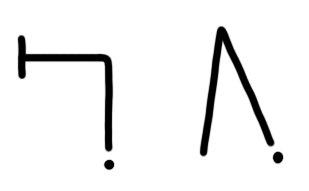

Several motion lines can be combined to create a new “pattern.”

pattern Step Three: A Map of Movement Marks

Combined Directional Marks

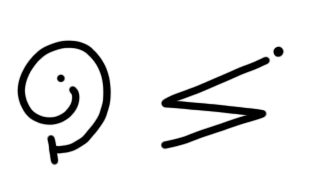

They also don’t have to be straight lines. Circular and zigzag lines are commonly written as well.

circlezigzag Step Three: A Map of Movement Marks

Circular and Zigzag Directional Motion Lines

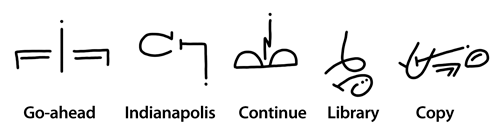

Here are a few examples of ASL words that use directional lines.

exampledirASLwords Step Three: A Map of Movement Marks

Examples of ASL words that use directional movement marks.

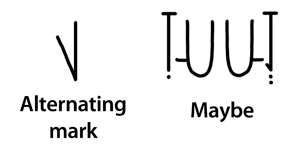

Sometimes the left and right hands take turns while moving. Alternating marks show the turn-taking. It is put on the first motion line and always faces the interior of the ASL word.

altmark Step Three: A Map of Movement Marks

Alternating mark with an example ASL word.

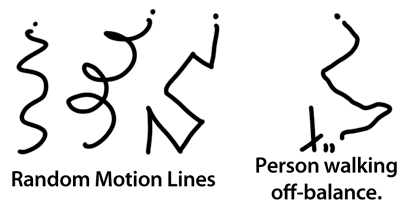

Random motion lines are the motion lines that do not have a set path. They work best when used with appropriate unusual or creative ASL words.

random Step Three: A Map of Movement Marks

Random motion lines with an example ASL description.

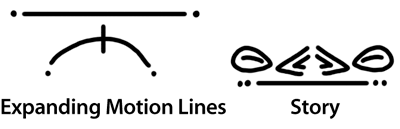

When handshapes contact each other and then move apart, the expanding motion line documents their movement. It looks like a single line with two endpoints. By default the expanding motion line is horizontal. To change to an up-and-down axis, add a vertical mark in the center.

expanding Step Three: A Map of Movement Marks

Expanding motion lines with an example ASL word.

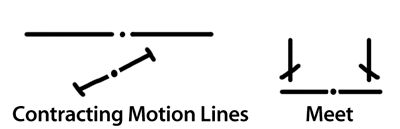

The opposite of an expanding motion line is a contracting motion line. The two motion lines converge to a center with a single point.

contract Step Three: A Map of Movement Marks

Contracting motion line with example ASL word

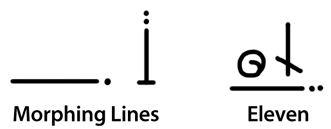

The second category of motion lines consist of morphing lines. Those lines do not show direction, rather, they assist with the changing of a handshape during an ASL word. The path taken during that change may or may not be directional, depending on the context.

morph Step Three: A Map of Movement Marks

Morphing lines with a written ASL example.

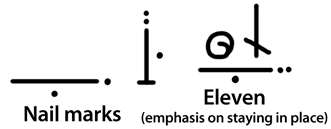

For some ASL words, it is important to show that the wrist stays stationary while its shape morphs. A nail mark helps in those special situations.

nailmark Step Three: A Map of Movement Marks

Nail marks with example ASL word.


Counting The Points

There are five types of points: endpoint, firmpoint, contact point, orbit mark, and crank mark.

Endpoints contain information on how many times the motion is done, and whether it is done normally or with an emphasis. A basic endpoint is a single dot.

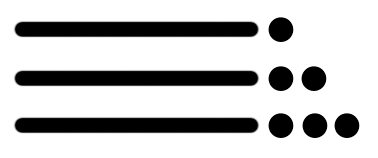

One endpoint means that the movement is done once. Two endpoints equals two movements. Three endpoints is the maximum used, as it means that the motion is repetitive.

endpointamount Step Three: A Map of Movement Marks

Endpoints (One, two, and repetitive)

A firmpoint uses a dash instead of a dot. A motion line that ends in a firmpoint is a movement that has emphasis added to it.

firmpoint Step Three: A Map of Movement Marks

Firmpoint

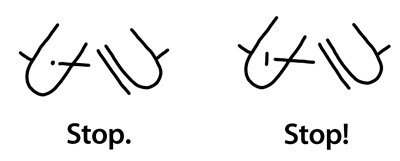

There is a difference between a word that uses an endpoint compared to a word that uses a firmpoint.

stop1 Step Three: A Map of Movement Marks

Endpoint vs. Firmpoint

It is possible to have an endpoint without a motion line. When that happens it becomes a contact point.

stopcontact Step Three: A Map of Movement Marks

Example of contact points.

Contact points do not always have to be on a digit. It can be placed on empty space, to suggest contacting an imaginary surface in the air.

click Step Three: A Map of Movement Marks

Contact point anchored to “air.”

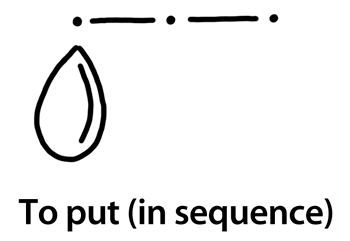

Those contact points can be combined with motion lines to create serial contact points.

putputput Step Three: A Map of Movement Marks

Example of a word using serial contact points.

An orbit mark is an expanded contact point. The small circle is a central point where handshapes “orbit” around it.

orbitmark Step Three: A Map of Movement Marks

Orbit mark and written ASL example.

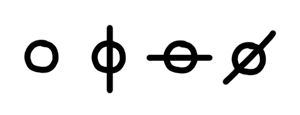

Sometimes the orbiting path of handshapes is cut into half, whether vertical or horizontal. For those rare words, the orbit mark has a line written across it. It is also called a steering mark.

steering Step Three: A Map of Movement Marks

Steering marks

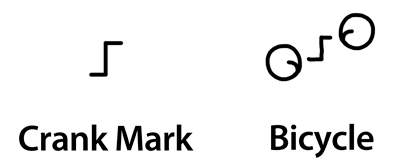

For a different sort of orbit that has handshapes moving parallel to each other, the crank mark clarifies their movement.

crankmark Step Three: A Map of Movement Marks

Crank mark with example ASL word.


Practice

Add movement marks to the following index digits:

practicemovementline Step Three: A Map of Movement Marks


Next Step: Locatives


Answer Key:

answerkeymovementline Step Three: A Map of Movement Marks
